[amsat-bb] PW-Sat signals decoded @ ISIS

[wouter weggelaar]

Hi All,


PW-Sat has been decoded using the ISIS GSKit on the first and 3rd pass
of PW-SAT over Delft.

On the third pass we also connected SDR hardware to 70cm to listen for
the other cubes

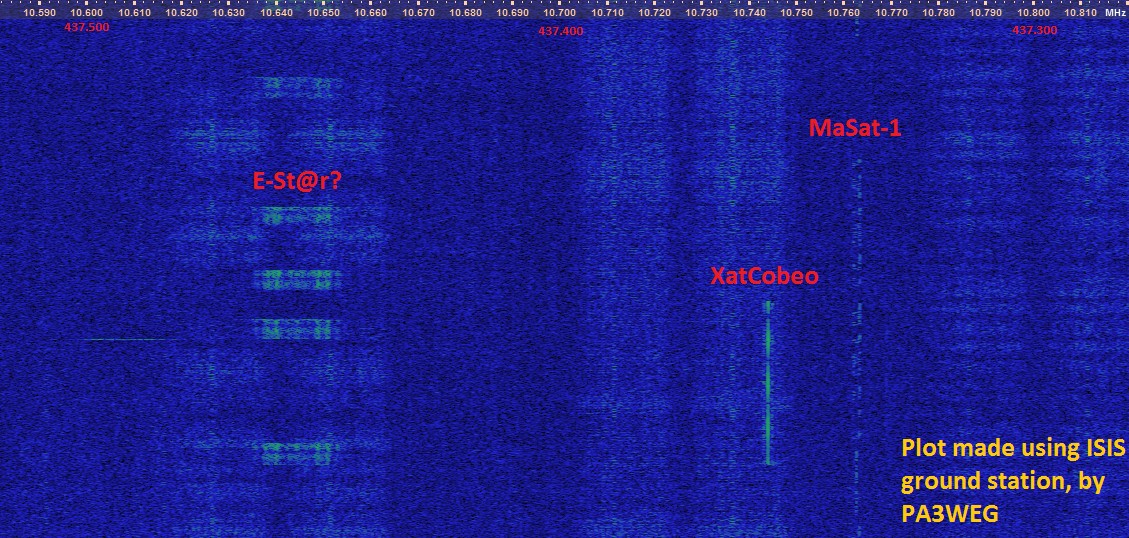

A spectrum plot can be found at
http://www.pa3weg.nl/pa3weg/images/Spectrum_plot_PA3WEG_3rd_pass_1537UTC.jpg
and the recording of PW-SAT at
http://www.pa3weg.nl/pa3weg/recordings/PW-SAT%20recording%20PA3WEG%2013-02-2012_1207UTC.mp3

As you can imagine, all our engineers gathered around when they heard
familiar BPSK 1200 sounds ;)

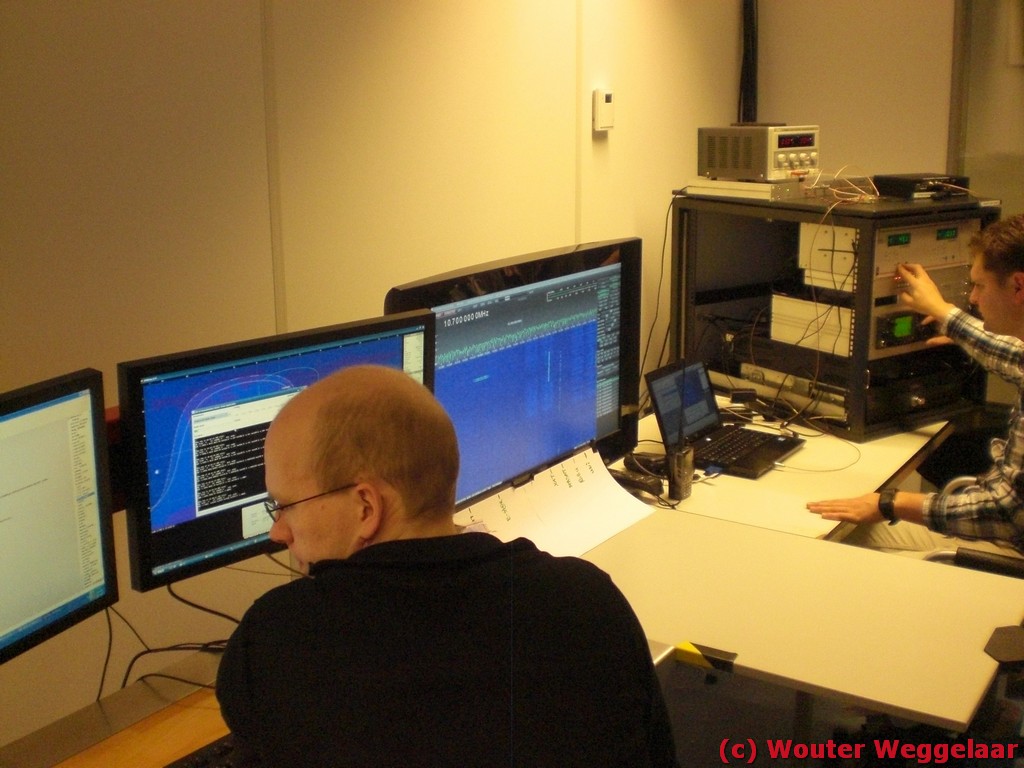

http://www.pa3weg.nl/pa3weg/images/TrackingVEGA01.jpg
http://www.pa3weg.nl/pa3weg/images/TrackingVEGA02.jpg

We have heard:
- PW-Sat
- MaSat-1
- XatCobeo
- Probably AlmaSat

Nothing heard from Goliat, Robusta and UniCubeSat

Wouter Weggelaar
PA3WEG
ISIS RF Engineer
