[amsat-bb] Home Satellite Station - Antenna Mounting Question

[Scott]

Hi Paul.

A couple of people have written with nice comments after seeing pictures of
my non-penetrating criss-cross roof platform that I have a variety of
antennas mounted on.

Since the following picture was taken, several other omni antennas and a
small dish have been added to my platform - it was designed on purpose to
provide a lot of mounting options.  A priority for me was flexibility.

https://www.qsl.net/k/k4kdr//images/2016-05-14--xquads.jpg

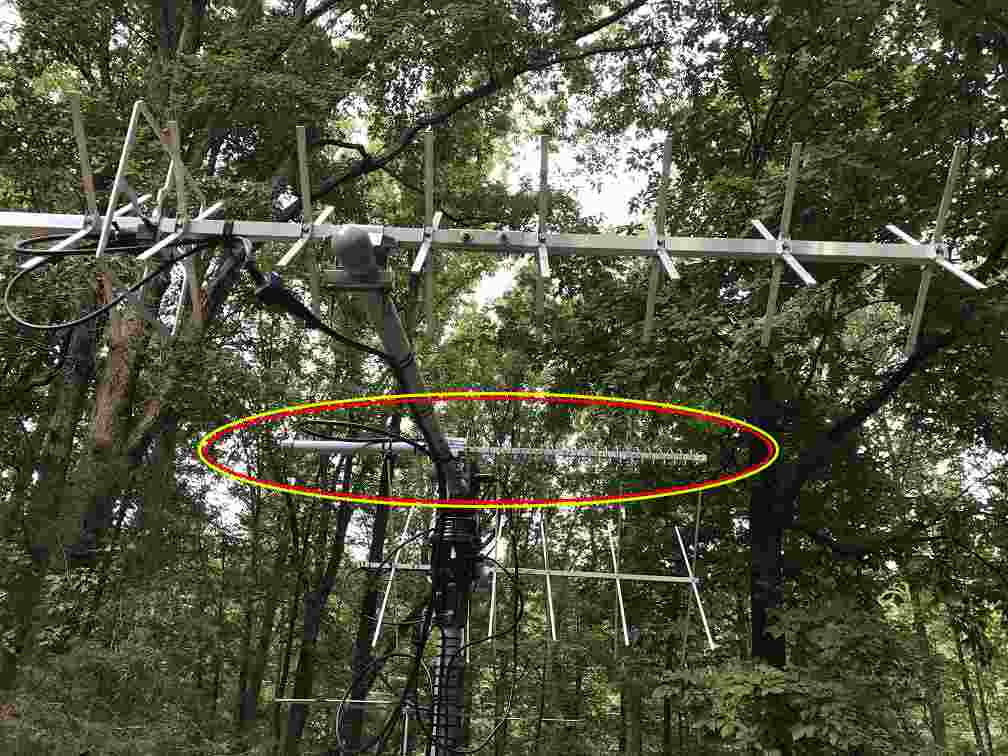

... but of course priority is given to the X-Quads (+ a 2.4 GHz helical
installed since the picture was taken) on the G-5500 rotator.

https://www.qsl.net/k/k4kdr//images/antenna-trio.jpg

With the weight and friction of four treated 4x4's, several 4x4 & 2x6 cross
pieces, and a half-dozen 1" concrete blocks, I don't have any concerns
about wind.

And finally, standing inside the confines of the platform makes it very
comfortable to work up there.  You feel quite secure with a thigh pressed
against the raised sections compared to that uneasy feeling that normally
comes with being on a roof peak.

I hope that helps & best of luck with your project!

-Scott,  K4KDR

===========================

On Mon, Jan 14, 2019 at 11:37 AM Paul Overn via AMSAT-BB <amsat-bb at amsat.org>
wrote:

> Hello,
> I will be moving to a new QTH, and have the opportunity to set up a nice
> satellite home station, but I'm running into some issues in finding
> information:
> So far I know I want the "M2 Leo Pack antenna system", with a Yaesu 5500
> Elv / Az Rotator. This setup will be mounted directly on the roof of my
> house. At this time a tower install is out.
> The issue is: What is the best system for mounting this on the roof? Is
> there a tripod? or will I need to custom make something? Any help would be
> appreciated. I have contacted M2 and DX engineering, but each tell me to
> talk to the other, so not much help there.
> Also, I still need to buy the rotator and antenna system, so if someone
> know of these for sale, let me know.
> Thanks!!!!
>
> Paul Overn
> KE0PBR
> Twitter: @KE0PBR
