[amsat-bb] Tuning HuskySat-1 telemetry signal

[Scott]

Hey Ken!

For 1k2 BPSK, the span is around 3000 Hz (USB).   So, most decoders expect
(or can be configured) to see the center of the audio output at 1500 Hz.

Sometimes you can improve SNR a bit by narrowing the bandwidth to cut off
some at each end, but that doesn't change the center being around 1500 Hz.

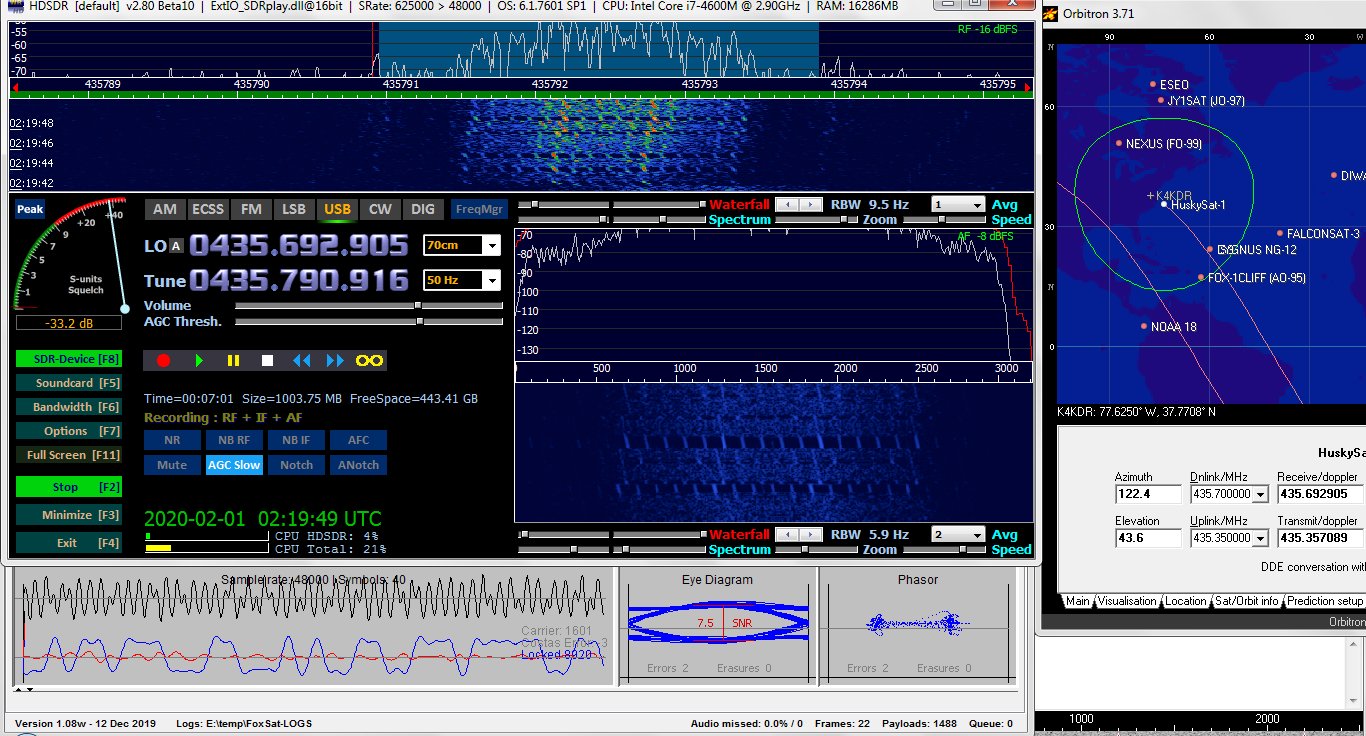

Here's a screen shot that I included with a tweet that illustrates this:

https://pbs.twimg.com/media/EPqD68nXsAIXN4V?format=jpg&name=large

-Scott,  K4KDR

====================================

-----Original Message-----
From: Ken Swaggart W7KKE via AMSAT-BB
Sent: Saturday, February 01, 2020 3:04 PM
To: AMSAT-BB
Subject: [amsat-bb] Tuning HuskySat-1 telemetry signal

Last night I didn't have any success decoding HuskySat-1's telemetry even
though the signal was very strong.  Thought today I might try using SpecTran
to help position the USB signal for decoding. What audio frequency should I
use? Approx 200 Hz?

73,
Ken, W7KKE
